Metal dynamic composite bi-metal tab terminal, post terminal, and current busbar can save assembly costs, which is the first choice for lithium-ion battery manufacturers. Copper-aluminum conductive transition joints are suitable for the transition connection of the conductive bus and copper-aluminum bus in graphite furnace in carbon factory.
Phohom's power battery structural parts has a high bonding strength, reducing resistance, and can avoid the risk of electric puppets that are prone to occur during conventional dissimilar metal welding. It can provide strong support for power battery carrier load and electrical energy storage.
Industry Applications
New Energy | Power Battery | Energy Storage

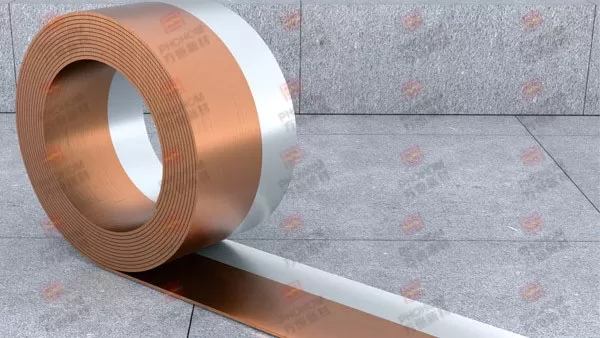

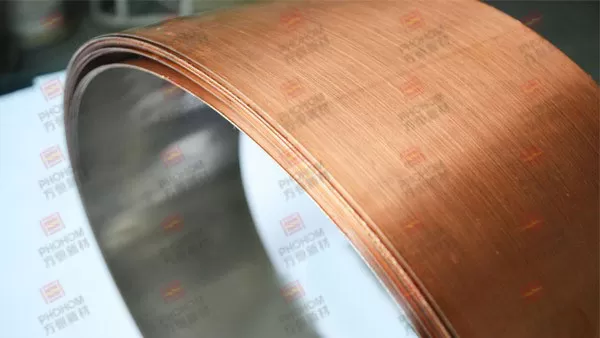

- New Energy Structure Components

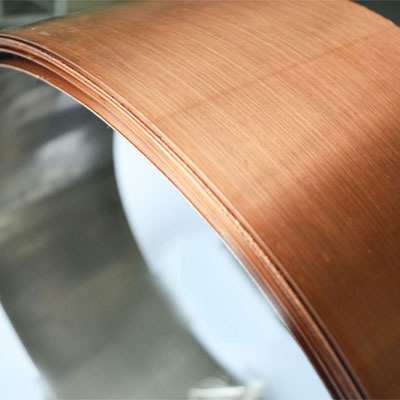

- As a component of the power battery, our tab terminal, post terminal, metal composite coils, etc. made out of copper-aluminum and copper-nickel composite materials have unique advantages such as high connection strength, strong stability, and small resistance. Lithium battery manufacturers and new e
Technical parameter of function connector
| Comparison Items |
Cu-Al pressure welding |
Other welding ways | Phohom technology |
| Interface | / | many interface compunds | few interface compounds |
| Shear Strength | ≥35MPa | ≥60Mpa | ≥70Mpa |
| Bending Angle | 90° no visible cracks | 180° no visible cracks | 180° no visible cracks |
| 20C DC resistivity | ≤0.02554 | / | ≤0.01189 |

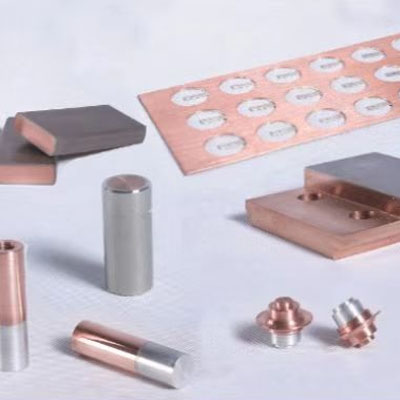

Cu-Al/St joint
Poles、Tabs
Busbar
Conductive beam
