Cryogenic joints are mainly used for transition connections between stainless steel and aluminium tubes. They are mainly used in the cold box of air separation, as the pipe connection in the cold box is not allowed to leak, so it can not be connected by flanges, but only by welding, and stainless steel and aluminium tubes can not be welded directly, so it is necessary to use steel and aluminium joints for transition.

Phohom's cryogenic transition joint made from explosive welding process owns high sealing and bearing capacity and it plays a key role in the low temperature engineering.We also provide other cryogenic transition joints of aluminum-stainless steel, titanium-stainless steel and other dissimilar metal combinations for you to use in the connection between transmission pipelines and liquefied gas storage tanks, heat transfer equipment and other equipment.

Related Products
Industry Applications
Cryogenic Transition Joints
Cryogenic Transition Joints
Cryogenic Transition Joints
Cryogenic Transition Joints
Cryogenic Transition Joints
Cryogenic Transition Joints
Cryogenic Transition Joints
Cryogenic Transition Joints

Cryogenic | Refrigeration Industry | Air SeparationUnit

Cryogenic Transition Joints
Cryogeinic transition joints are essential in low-temperature applications such as cryogenic storage and transportation systems, maintaining the integrity and performance of connections at extremely low temperatures.
Cladder
Backer

Mechanical Performance Testing



Items

Tensile Strength

(Mpa)

Bending
(°)
Shear Strength
(Mpa)
Impact Strength
(J)
Result

97

180 Al-Ti 92
Ti-St 324
-70℃     72
+65℃
   66
Standard Requipment

90

≥90 Al-Ti ≥50
Ti-St ≥140
Mean value ≥20
Sample ≥14



Cryogenic Transition Joints

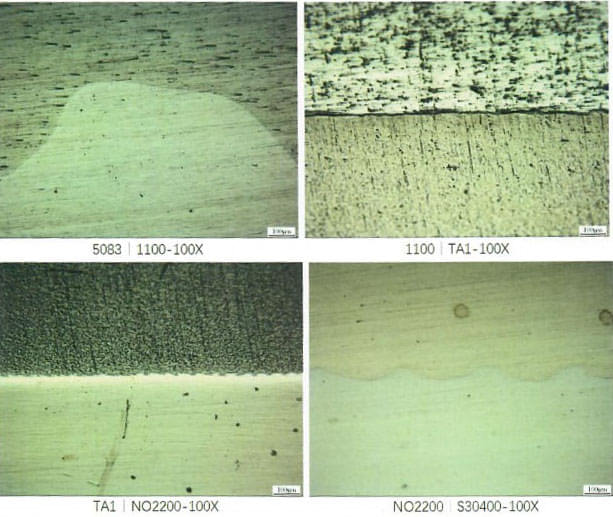

Optical Microscopy Observation-Good Interface Connection

Cryogenic Transition Joints

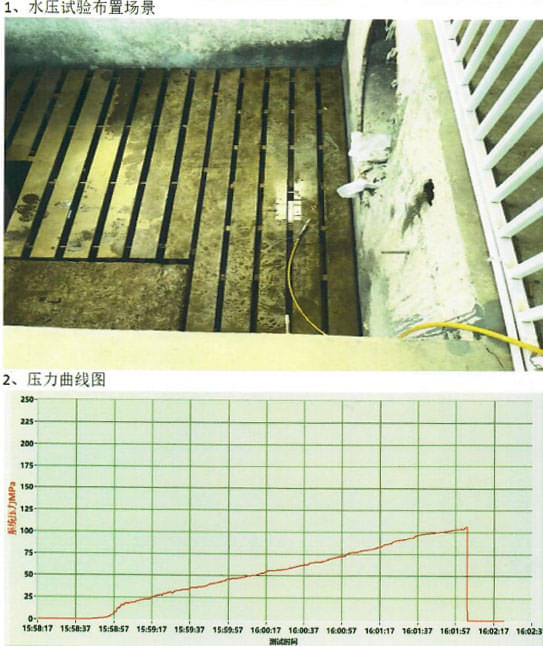

Hydraulic Pressure Test-No Failure at 105MPa

Cryogenic Transition Joints

Cold-Hot Cycling Treatment (- 269℃ ~ +100℃)

Cryogenic Transition Joints

Leakage Test (≤ 1.0×10-10 Pa.M3s-1)
